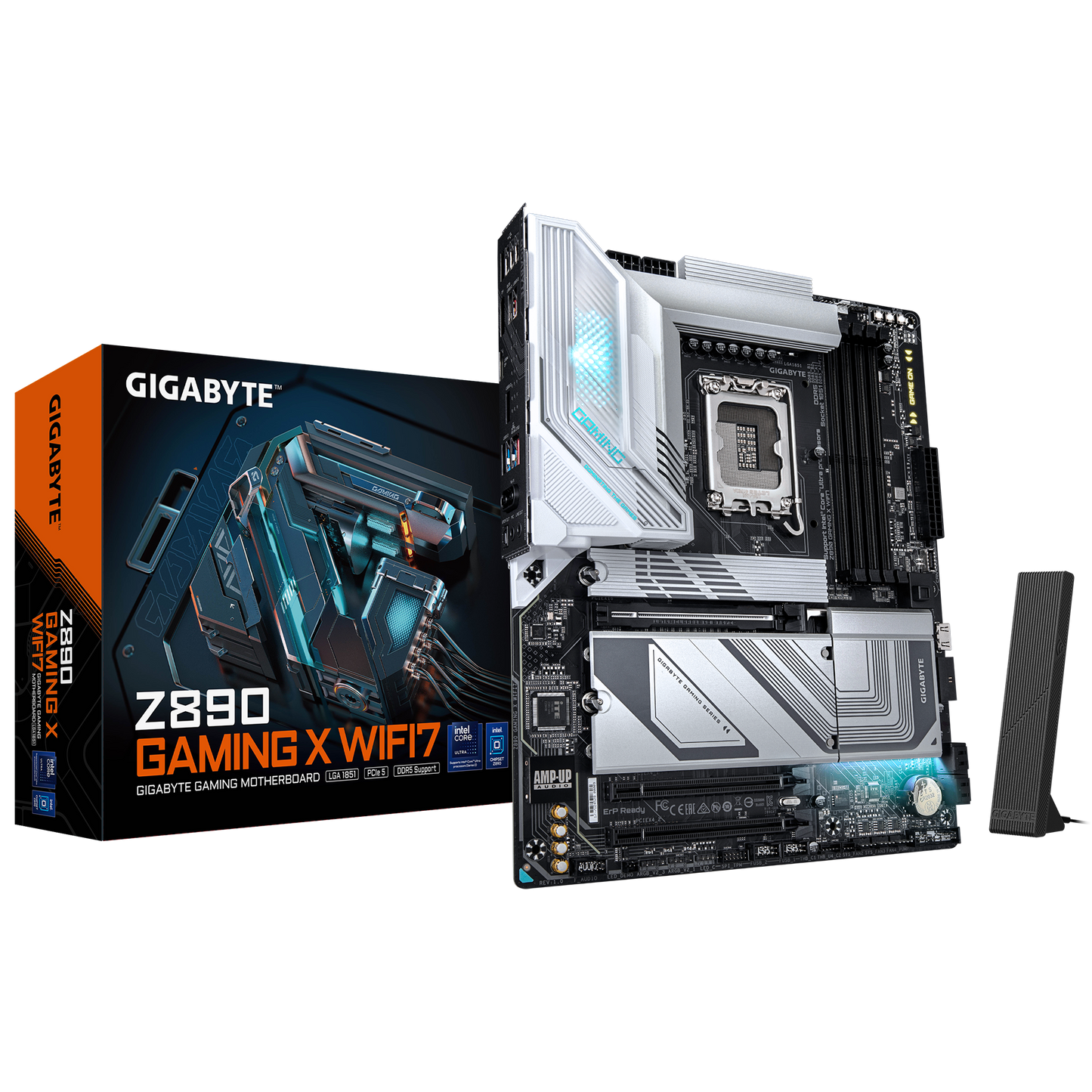

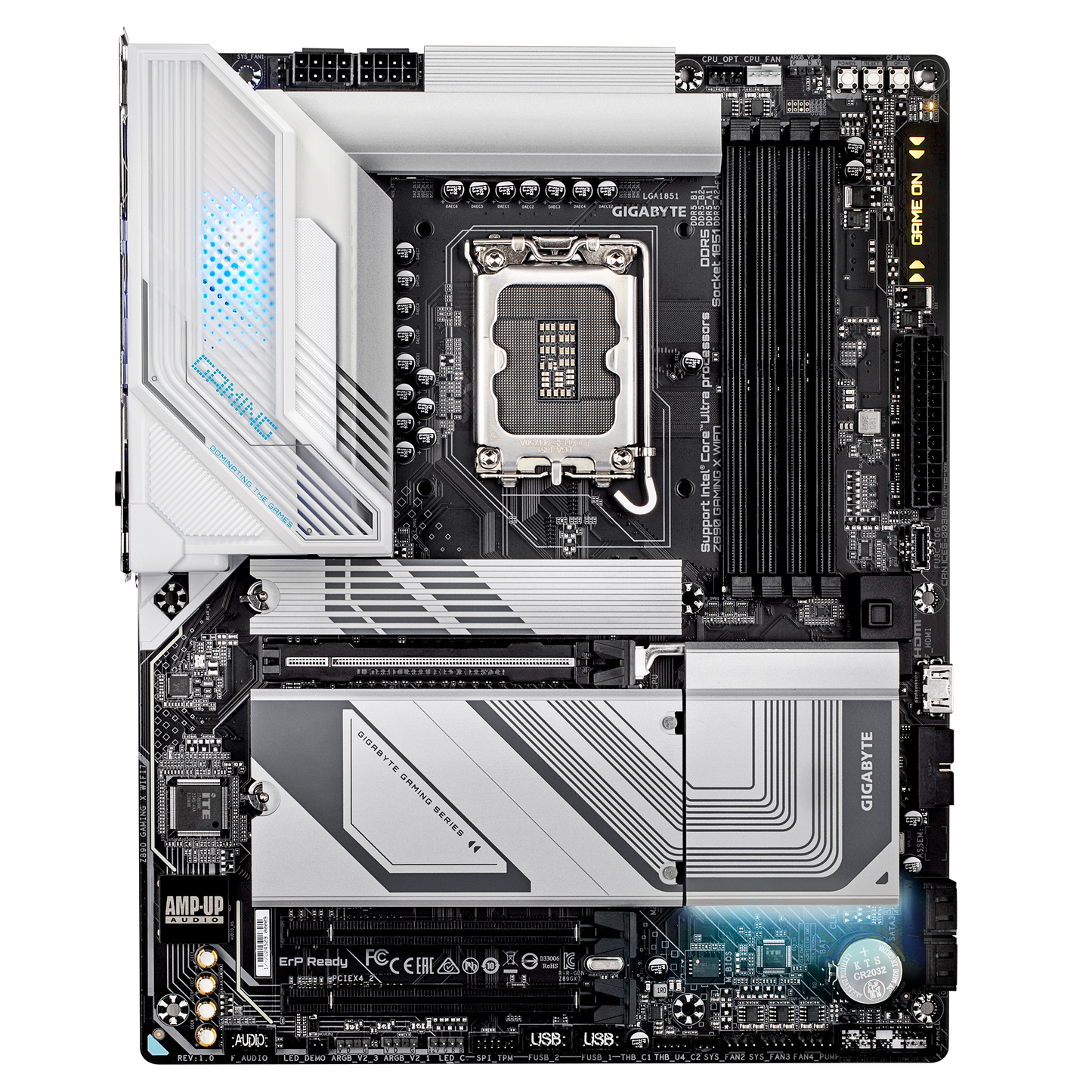

Z890 GAMING X WIFI7/ATX/INTEL LGA1851/4x DDR5 DIMM max 256GB/Max 8800MHz/1x PCIE5.0 (CPU), 2xPCIE4.0 (Chipset)/2x M.2 (CPU), 2x M.2(Chipset)

Z890 GAMING X WIFI7/ATX/INTEL LGA1851/4x DDR5 DIMM max 256GB/Max 8800MHz/1x PCIE5.0 (CPU), 2xPCIE4.0 (Chipset)/2x M.2 (CPU), 2x M.2(Chipset)

$626.00 AUD
$626.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Key Features

  • Supports Intel® Core™ Ultra processors (Series 2)
  • Digital twin 16+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • Premium Compatibility : 4*DDR5 with XMP Memory Module Support
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in  HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced   & M.2 Thermal Guard
  • Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
  • PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Specifications
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
Chipset Intel® Z890 Express Chipset
Form Factor ATX Form Factor; 30.5cm x 24.4cm

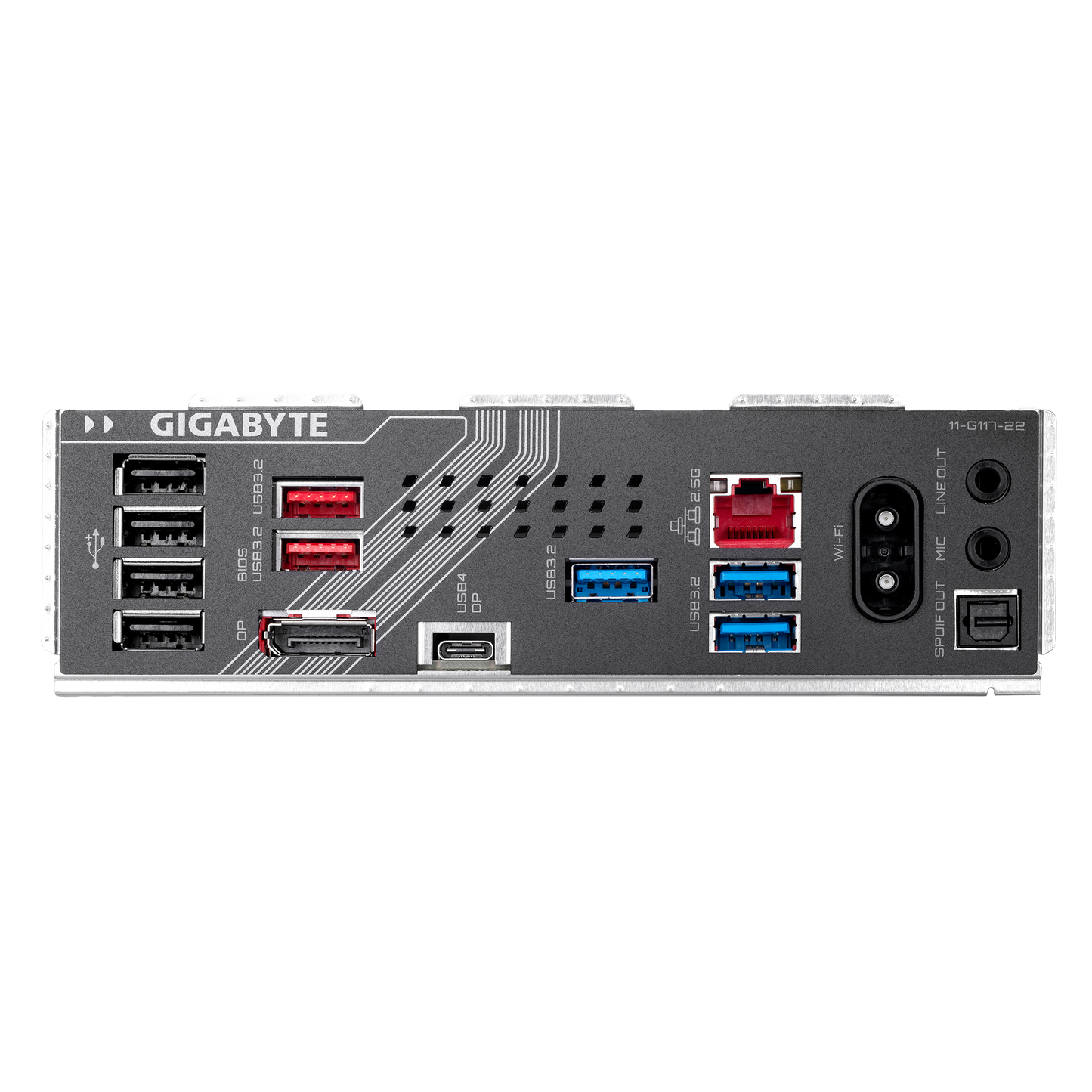

I/O Connectors Back Panel Connectors: 1 x USB4® USB Type-C® port (DisplayPort) 2 x USB 3.2 Gen 2 Type-A ports (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x DisplayPor, 2 x antenna connectors (2T2R), 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks
Integrated CPU Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version
