Socket: AMD AM5 Chipset: AMD X870E Memory Support: DDR5, up to 8000 MHz Expansion Slots: Multiple PCIe 5.0 x16 slots Storage: Multiple M.2 slots, incl

Socket: AMD AM5 Chipset: AMD X870E Memory Support: DDR5, up to 8000 MHz Expansion Slots: Multiple PCIe 5.0 x16 slots Storage: Multiple M.2 slots, incl

$887.00 AUD
$887.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Key Features

  • AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L

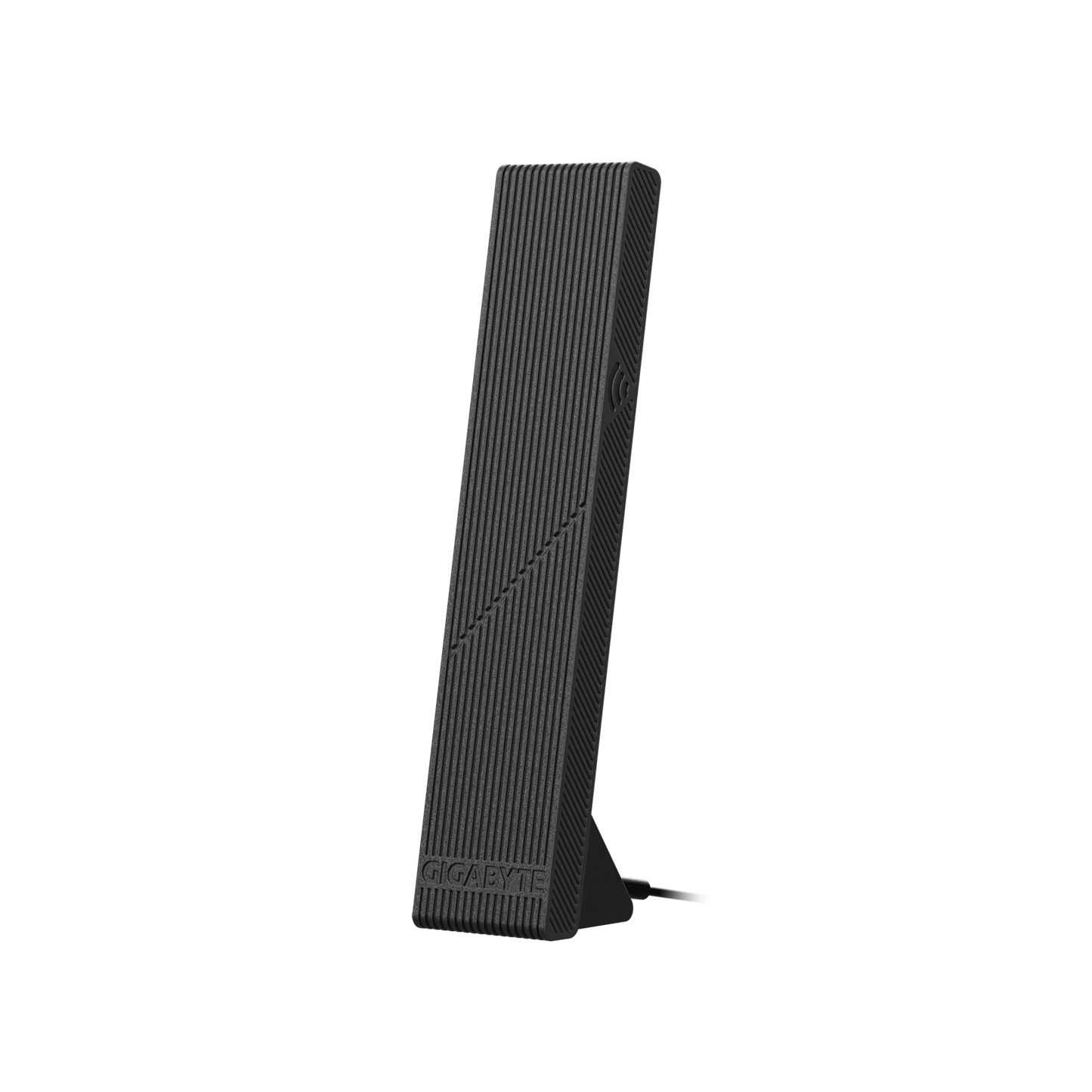

  • Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
  • Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
  • PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

Specifications
Audio Realtek® ALC1220 CODEC
Chipset AMD X870E
Form Factor ATX Form Factor; 30.5cm x 24.4cm

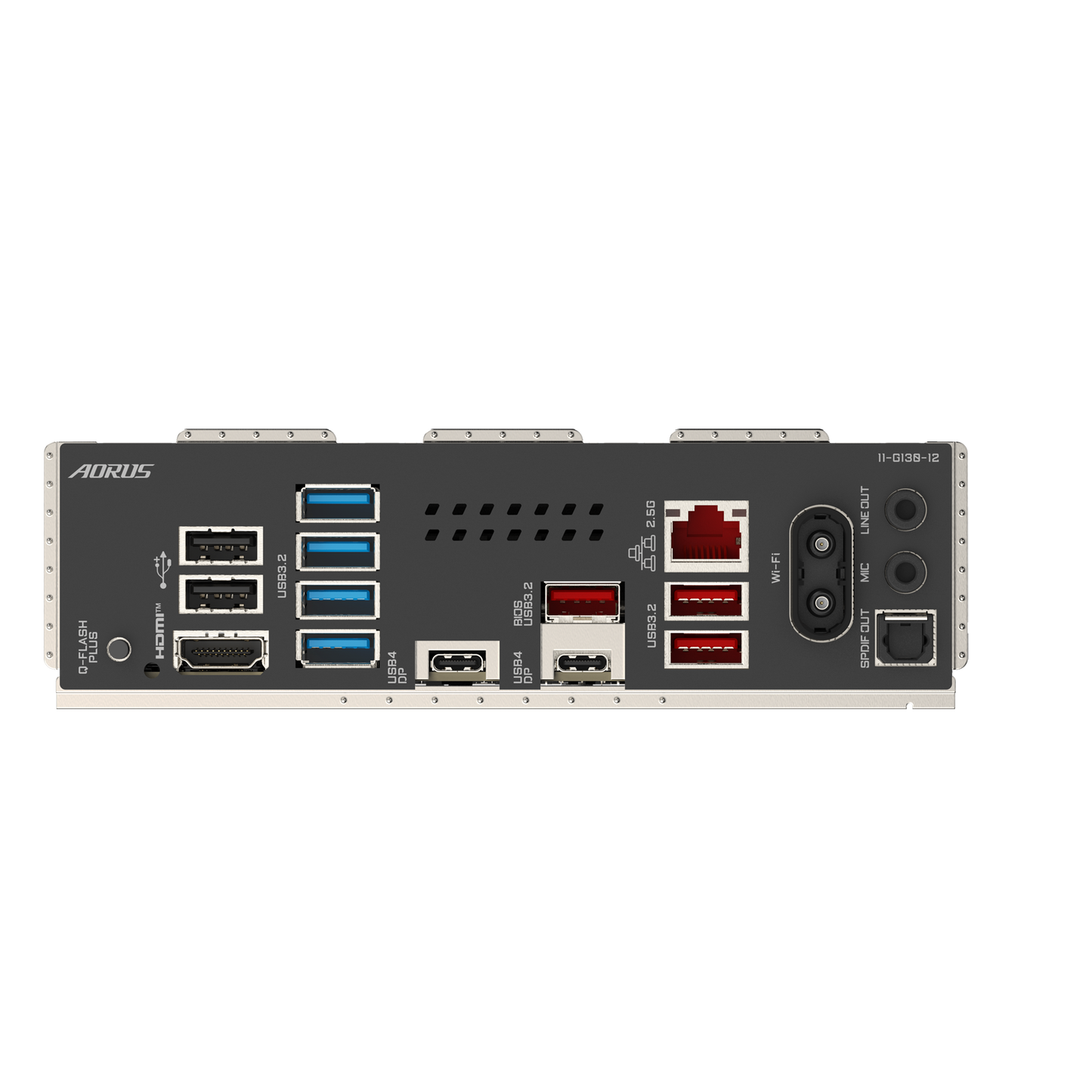

I/O Connectors Back Panel Connectors: 1 x Q-Flash Plus button, 2 x USB 2.0/1.1 ports, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 2 x USB4® USB Type-C® port (DisplayPort), 3 x USB 3.2 Gen 2 Type-A ports (red), 1 x RJ-45 port, 2 x antenna connectors (2T2R), 1 x optical S/PDIF Out connector, 2 x audio jacks
Integrated CPU Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
